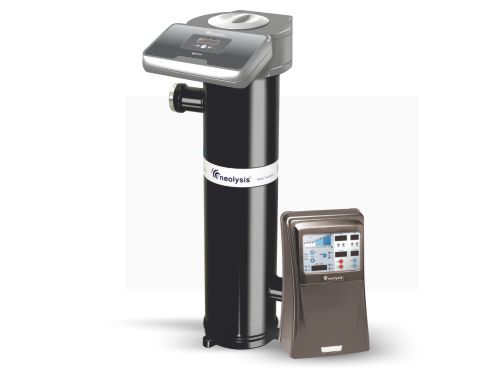

Saltklorinator Elektrolys Neolysis systemet

Vår mest avancerade vattenrening

Modeller: NEO-12 | NEO-24 | NEO-32 versioner: NEO | Integrerad pH / ORP kontroller

Beskrivning:

Salt-vatten elektrolys system samt UV-strålning, för användning i privata pooler upp till 120m³.
Arbetar med låga saltkoncentrationer (mindre än 2 gram per liter).
Vatten som är lämpligt för bevattning.
Maximal vattenkvalitet.
Maximal kapacitet för att minska kloramin (LP UV + elektrolys).
Låg Salt-serien elektroder (4.000-5.000) och LP-HO UV-lampor (13.000 timmar).
Neolysis. Noll Salt UV. Låga underhålls. Inget salt Dessutom krävs.

		Production scale (%)			Key for pH / ORP setpoint programming
		Keys increase / decrease output			Indicator of low pH / ORP alarm (pH < 6.5 / ORP <menor de 650 mV)
		Indicator of activated automatic cover control			Indicator of high pH/ORP alarm (pH > 8.5 / ORP > 850 mV)
		Salinity test			Display of water pH / ORP
		Self-cleaning indicators (direct / reverse polarity)			Display of the pH / ORP setpoint
		Indicator of activated ORP control (auto mode)			Display of system info/config zero salt electrolysis
		Indicator of Flow alarm			Display of system information UV
		Indicator of electrode passivation alarm			Lamp alarm
		Indicator of high and low salinity			Info Key
		Salinity scale (qualitative)			Alarm
		Keys for calibration mode (pH and ORP)

BESKRIVNING	NEO-12/PH/+	NEO-24/PH/+	NEO-32/PH/+
Input voltage	230 Vac, 50/60 Hz.
Consumption	0.8 A	1.1 A	1.5 A
Fuse (5×20 mm.)	2AT	3AT	4AT
Output (Adc)	12 A (6 A x 2)	24 A (12 A x 2)	32 A (16 A x 2)
Production (gr.Cl2/hr)	10 … 12	20 … 24	25 … 32
m³ Pool (16-24ºC)	50	80	120
Salinity
Room temperature	máx. 40ºC
Enclosure	ABS
Polarity reversal	2 h. / 3 h and test config menu
Production control for cover	0 … 100 % (11 levels)
Flow sensor (gas)	Yes. config menu enable-disable – Led flow
Flow switch sensor	Yes config menu enable-disable – Led flow – sensor not included
Production control for cover	config menu 9 levels (10 … 90 %), (O, NC) Potential-free input. COVER Led
External production control	config menu (0, set%), (O, NC) Potential-free input. ORP Led.
Check cell function	Yes. Check electrodes Led.
Pump stop pH	Yes (config 1 … 99 min)
Salinity test	Yes. Key test 7 conductivity levels.
Salt alarm indicators	High and Low salinity. 2 Leds.
Setup menu	Yes
Remote control (cable)	Yes (Up to 50 m.)
Comunication (Modbus) (optional)	Yes
Compatible Poolstation	Yes

BESKRIVNING	NEO-12/PH/+	NEO-24/PH/+	NEO-32/PH/+
Electrodes (self-cleaning titanium activated)	Low Salt Grade (4.000 … 5.000 hr)
Flow min (m³/h)	2	4	6
Number of electrodes	7	9	9
Material	Polyethylene
Line connection	Thread Female 2″
Max pression	3 Kg./cm²
Working temperature	15 … 40ºC máx.
Rated UV/UV-C	48 W / 13 W	56 W / 18 W	56 W / 18 W
Lamps-hours	1 / 13.000 hr
Fuse (UV)	0.6 AT

BESKRIVNING	DOM-12 LS PH/+	DOM-24 LS PH/+
Measure range	0.0 … 9.9 pH \| 0 … 999 mV (ORP)
Control range	7.0 … 7.8 pH \| 600 … 850 mV (ORP)
Precission	± 0.1 pH \| ± 1 mV (ORP)
Calibration	Automatic with calibration solution
Control output (pH)	One output 230 Vac/500 mA máx. dosing pump connection
Sensor pH	Epoxy body 12 x 150 mm., 0-80ºC, solid electrolte, range 0-12 pH \| 0-1000 mV (ORP)
